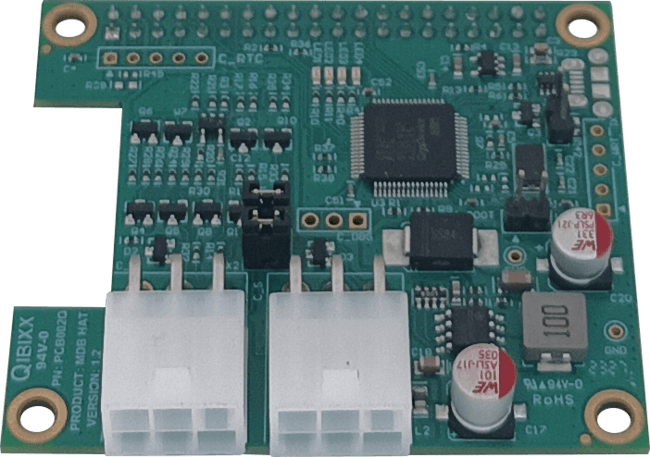

MDB Pi Hat

The bridge between tour Raspberry Pi and MDB Devices for effortless communication and control

seta destaque titulo

Easily upgrade your business

MDB Pi Hat is a reliable, universal MDB interface designed to seamlessly switch between MDB master and MDB peripheral roles. Built for convenience, it directly plugs into Raspberry Pi and other embedded computers with a 40-pin ‘HAT’ connector.

Offering flexible connectivity options, it supports both serial and SPI connections to the host, ensuring compatibility and ease of integration.

Plus, with full software control, firmware updates can be performed directly from the host, making it a truly future-proof addition to your embedded systems projects.

checkmark

Chose the Perfect Fit

Select from three tailored versions of our tool, designed to meet your specific needs.

checkmark

Seamless Compatibility

Optimized for Raspberry Pi and any device with a compatible 40-pin port.

checkmark

Expert Technical Support

Receive guidance at every step from our experienced engineering team.

MDB Pi Hat: What can I do with this device?

What can I do with this Device?

Implement solutions for contactless bank card, smartphone and web application payments, voice controlled credit and even get an age verification before selling specific products.

Dig in our solutions:

MDB Cashless Payments

MDB Cashless Payment

Compare the Versions

MDB Port

Inputs

Outputs

LED Status

Communication

Power requirements

MTBF

MDB Pi Hat USB

x2 (VMC + Peripheral)

N/A

N/A

x4 (TX & RX)

- Serial TTL 3V3
- Micro USB

- 5V DC through Raspberry Pi
- 5V DC through micro USB
- 20V to 42,5V through MDB

TBA

Download the Datasheet

MDB Pi Hat Plus

x2 (VMC + Peripheral)

N/A

N/A

x4 (TX & RX)

Serial TTL 3V3

- 5V & 3.3V DC through Raspberry Pi
- 20V to 42,5V through MDB

TBA

Download the Datasheet

MDB Pi Hat VMC

x1 (VMC)

x4 Digital

- x5 Driver Low 1A
-x4 Driver High 1A

x4 (TX & RX)

Serial TTL 3V3

- 5V & 3.3V DC through Raspberry Pi
- 20V to 42,5V through MDB

TBA

Download the Datasheet

MDB Pi Hat USB

MDB Port
x2 (VMC + Peripheral)

Inputs
N/A

Outputs
N/A

LED Status
x4 (TX & RX)

Communication
- Serial TTL 3V3
- Micro USB

Power requirements
- 5V DC through Raspberry Pi
- 5V DC through micro USB
- 20V to 42,5V through MDB

MTBF
TBA

MDB Pi Hat Plus

MDB Port
x2 (VMC + Peripheral)

Inputs
N/A

Outputs
N/A

LED Status
x4 (TX & RX)

Communication
Serial TTL 3V3

Power requirements
- 5V & 3.3V DC through Raspberry Pi
- 20V to 42,5V through MDB

MTBF
TBA

MDB Pi Hat VMC

MDB Port
x1 (VMC)

Inputs
x4 Digital

Outputs
- x5 Driver Low 1A
-x4 Driver High 1A

LED Status
x4 (TX & RX)

Communication
Serial TTL 3V3

Power requirements
- 5V & 3.3V DC through Raspberry Pi
- 20V to 42,5V through MDB

MTBF
TBA

Useful Links

seta destaque titulo

Visit our blog to learn more about the applications of this product

There you will find step-by-step guides, tutorials prepared by our experts and clear explanations. Here are some relevant links:
